Azure Blob - External Identity Provider Authentication

Overview

Two new authentication options are being introduced for Azure Blob Storage access:

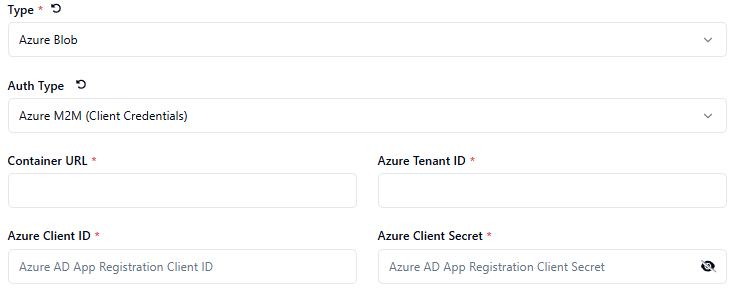

1. Azure Machine/Client Credentials - Direct communication with Azure and blob storage

2. External Identity Provider Authentication - Authentication through external providers like Okta or Auth0

Key Features

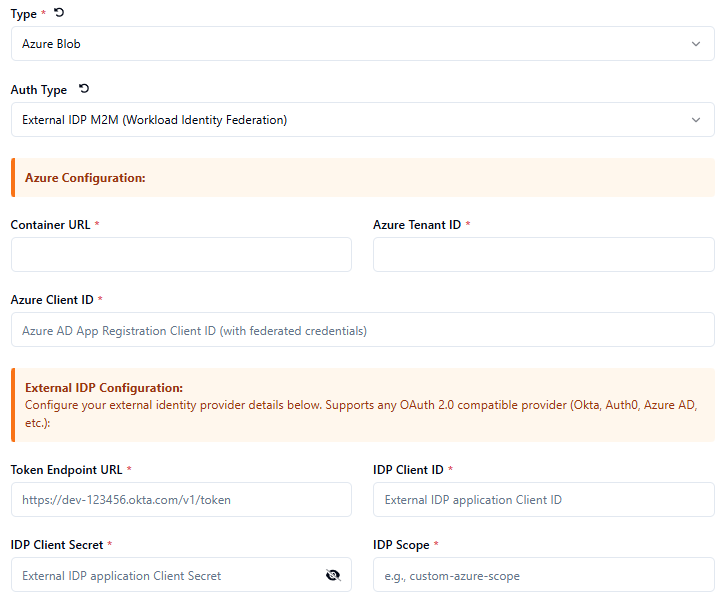

External Identity Provider Flow

• Customers provide Azure tenant ID and application ID (registered in Azure AD)

• No secret sharing required - authentication handled through external identity provider

• Token exchange process: External IDP token → Azure token → Blob storage access

• Uses federated identity credentials in Azure

Supported Providers

• Okta (primary testing done with this)

• Auth0

• Other external identity providers (potentially)

Configuration Requirements

Okta Configuration

• Register application in Okta

• Configure API/Authorization server in Okta

• Set up token endpoint and metadata URL

• Application should use private key authentication (not client secret - this is disabled/not supported)

• Default token settings can be used (no special grant types needed)

Azure Configuration

• Register application in Azure AD

• Configure federated identity credentials

• Link Okta application to Azure application via:

  • Issuer URL (from Okta)

  • Application ID (from Okta)

  • Audience configuration

Required Azure Permissions

Two roles needed for the registered application:

1. Storage Blob Data Contributor - For data operations (upload/download/listing)

2. Storage Account Contributor OR Reader - For accessing storage properties and metadata

Note: Reader role may be sufficient instead of Storage Account Contributor for metadata operations

Technical Implementation

Token Management

• Uses Microsoft library for Azure communication

• Automatic token refresh handling

• Checks token expiration before each API call

• Refreshes token if less than 5 minutes remaining

• Based on client credential flow (no refresh tokens)

• Default token lifetime: 1 hour (configurable via policy)

Customer Benefits

• Enhanced Security - No need to share Azure credentials directly

• Centralized Access Management - Customers can manage access through their existing identity provider

• Quick Access Control - Can disable access centrally through their IDP without touching individual services

• Simplified Credential Management - Reduces credential sprawl

Customer Responsibilities

• Configure their Okta/external IDP

• Register application in their Azure subscription

• Assign appropriate roles to the application

• Provide configuration details (tenant ID, application ID, token endpoints)
